Introduction
STDResin8100 consists of epoxy resin (Component A) and amine-based curing agent (Component B), specifically designed for vacuum-assisted infusion processes. The combination provides an optimal balance between pot life and reactivity. This system is ideal for large mold production requiring extended infusion time, delivering excellent mechanical/thermal properties in cured state and recyclability through degradation.
Applications
-
Wind turbine blades
-
Nacelle fairings
-
Hub covers
-
Composite manufacturing
Component Physical Properties (Pre-Cure)
|
Component |
Component A |
Component B |
|---|---|---|
|
Appearance |
Colorless/pale yellow liquid |
Pale green liquid |
|
Viscosity @25℃/mPa·s |
1,200-1,600 |
5-60 |
|
Mixed Viscosity @25℃/mPa·s |
200-300 |
200-300 |
|
Density/g/cm³ |
1.10-1.20 |
0.95-1.00 |
Curing Conditions
|
Parameter |
Component A |
Component B |
|---|---|---|
|
Weight Ratio |
100 |
32 (30-34) |
|
Volume Ratio |
100 |
39 (37-41) |
|
Room Temp Cure |
≥15℃, ≥5h |
≥15℃, ≥5h |
|
Heat Cure |
80℃, 5h |
80℃, 5h |
Cured Properties
|
Property |
Value |
|---|---|
|
Tensile Strength/MPa |
65 |
|
Tensile Modulus/MPa |
3,100 |
|
Tensile Elongation at Break |
≥5% |
|
Flexural Strength/MPa |
110 |
|
Flexural Modulus/MPa |
3,100 |
|
Glass Transition Temp/℃ |
≥75 |
|
Cured Density/g/cm³ |
1.16 |
|
*Tensile Strength Retention (pH=4, 23℃, 1d) |
102.2% |
|
Tensile Strength Retention (pH=4, 50℃, 1d) |
98.8% |
|
Tensile Strength Retention (pH=4, 50℃, 7d) |
86.2% |
*Typical cured data, not specifications. Curing regime: 5h@RT + 5h@80℃
*Acid rain resistance test (H₂SO₄/HNO₃ mixture), comparable to blade infusion resins.
Viscosity Curve
Exotherm Curve

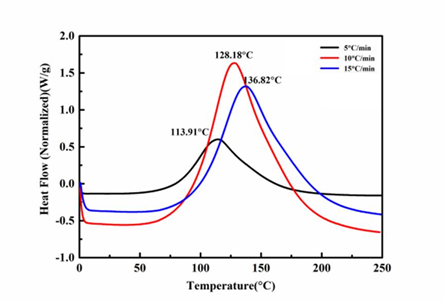

DSC Curing Curve
Tg Measurement (DSC)
Packaging
25Kg, 200Kg, 1000Kg
Storage & Shelf Life
-
Store in cool, dry and clean environment
-
Reseal immediately after use
-
24-month shelf life in original packaging
PPE Requirements
|
Category |
Requirement |
|---|---|
|
Gloves |
Chemical-resistant impermeable gloves |
|
Respiratory |
Not required |
|
Eye Protection |
Splash-proof goggles |
|
Body Protection |
Full-body protective clothing. Equip eyewash stations and safety showers |
First Aid
Skin Contact
-
Flush with soap/water for 5min
Eye Contact
-
Rinse with flowing water for 20min
-
Seek medical help
Inhalation
-
Move to fresh air
-
Consult physician if symptoms persist
